ProRes YUVA 4:4:4 (10bit) does not work on VEGAS pro

    • Fixed
  • Joelson_Forte
  • October 3, 2021 at 11:06 PM
1st Official Post
  • Joelson_Forte
    Student
    Reactions Received
    3
    Posts
    54
    • October 3, 2021 at 11:06 PM
    • #1

    The ProRes YUVA 4:4:4 (10bit) option which does processing with alpha channel (transparent background) does not work in VEGAS pro. The video is processed correctly, but the alpha channel is not generated. I believe this is a problem in VEGAS as this option works correctly in Adobe Premiere and After effects.

  • Rumourd
    Beginner
    Posts
    2
    • November 12, 2021 at 7:05 AM
    • #2

    Same issue!

  • Vouk
    Administrator
    Reactions Received
    498
    Posts
    2,491
    • November 29, 2021 at 9:25 AM
    • Official Post
    • #3

    Voukoder currently gets the frame data as I420 or P010 from VEGAS only (which does not have alpha channel). I would have to use A410 for this.

    Help to improve this plugin and support me on patreon or paypal. Thank you.

    Do you need a custom Voukoder build really fast? Click here.

    I also create custom encoder plugin solutions for Adobe products and DaVinci Resolve.

    • Next Official Post
  • Steve Rhoden (Hentys)
    Student
    Reactions Received
    10
    Posts
    67
    • November 29, 2021 at 10:29 AM
    • #4

    Well then, we would be very grateful for you to use A410 for that then..... Thanks!

    Steve Rhoden


    https://www.vegascreativesoftware.info/us/users/profile/Steve_Rhoden/


    http://www.facebook.com/FilmexCreativeMedia


    https://my.creativecow.net/Steve-Rhoden

  • Vouk
    Administrator
    Reactions Received
    498
    Posts
    2,491
    • November 29, 2021 at 11:53 AM
    • Official Post
    • #5

    Working on it.

    Edit: Please try out the latest VEGAS connectors.

    Changes:

    - Alpha channel templates (VEGAS 18 and 19)

    - Speed improvements

    Help to improve this plugin and support me on patreon or paypal. Thank you.

    Do you need a custom Voukoder build really fast? Click here.

    I also create custom encoder plugin solutions for Adobe products and DaVinci Resolve.

    • Previous Official Post
    • Next Official Post
  • Steve Rhoden (Hentys)
    Student
    Reactions Received
    10
    Posts
    67
    • November 30, 2021 at 11:13 AM
    • #6

    Appreciate it Vouk... Thanks for dedicating your time to this project, and As always, you are the man!

    Steve Rhoden


    https://www.vegascreativesoftware.info/us/users/profile/Steve_Rhoden/


    http://www.facebook.com/FilmexCreativeMedia


    https://my.creativecow.net/Steve-Rhoden

  • Vouk
    Administrator
    Reactions Received
    498
    Posts
    2,491
    • November 30, 2021 at 11:33 AM
    • Official Post
    • #7

    Just wondering ... Did you notice a speed improvement?

    Help to improve this plugin and support me on patreon or paypal. Thank you.

    Do you need a custom Voukoder build really fast? Click here.

    I also create custom encoder plugin solutions for Adobe products and DaVinci Resolve.

    • Previous Official Post
    • Next Official Post
  • Steve Rhoden (Hentys)
    Student
    Reactions Received
    10
    Posts
    67
    • November 30, 2021 at 4:16 PM
    • #8

    Overall rendering speed improvement or speed improvement for the new alpha channel processing?

    Steve Rhoden


    https://www.vegascreativesoftware.info/us/users/profile/Steve_Rhoden/


    http://www.facebook.com/FilmexCreativeMedia


    https://my.creativecow.net/Steve-Rhoden

  • Vouk
    Administrator
    Reactions Received
    498
    Posts
    2,491
    • November 30, 2021 at 4:17 PM
    • Official Post
    • #9

    Overall.

    Help to improve this plugin and support me on patreon or paypal. Thank you.

    Do you need a custom Voukoder build really fast? Click here.

    I also create custom encoder plugin solutions for Adobe products and DaVinci Resolve.

    • Previous Official Post
    • Next Official Post
  • Steve Rhoden (Hentys)
    Student
    Reactions Received
    10
    Posts
    67
    • November 30, 2021 at 5:03 PM
    • #10

    Just ran a very short test, and i did experience a very slight improvement in the overall rendering speed over previous versions..... Therefore, so far so good....Will go a bit more in-depth later.

    Steve Rhoden


    https://www.vegascreativesoftware.info/us/users/profile/Steve_Rhoden/


    http://www.facebook.com/FilmexCreativeMedia


    https://my.creativecow.net/Steve-Rhoden

  • Joelson_Forte
    Student
    Reactions Received
    3
    Posts
    54
    • December 1, 2021 at 7:07 PM
    • #11

    Hi Vouk

    Thank you so much for working on it.

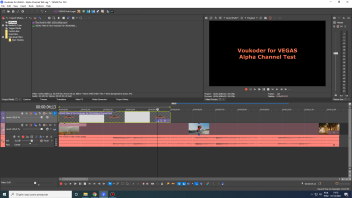

    I did a little test on Vegas Pro 19. I rendered only the text of the timeline with transparent background using Voukoder with new alpha channel models.

    The transparent background is created, but when adding the video to the timeline the text of the video is not displayed even with the Alpha Channel Strainght (Unmatted) option enabled in Properties/Media.

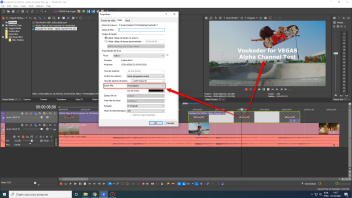

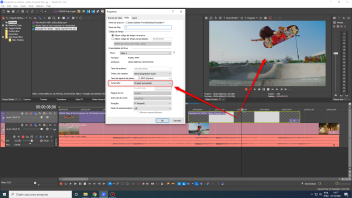

    Only the Alpha channel Premultiplied option in Properties/Media displays the text of the video, but the colors and transparency are changed in this mode.

    If you wish, my full screen recording with this test can be downloaded from this link:

    Voukoder for VEGAS - Alpha Channel Test.rar
    Shared with Dropbox
    www.dropbox.com

    Edited 2 times, last by Joelson_Forte (December 2, 2021 at 5:45 AM).

  • Vouk
    Administrator
    Reactions Received
    498
    Posts
    2,491
    • December 2, 2021 at 9:28 AM
    • Official Post
    • #12

    So If I understand this correctly:

    • The Video with the transparent background "Voukoder for VEGAS Alpha Channel test" is being exported correctly with that Alpha Channel template, right? If so then basically Voukoder is basically working.
    • Even on the timeline everything looks correct.
    • When rendering the final video there are issues in the rendered video.

    I guess this is an issue with VEGAS and/or with its settings as the transparent video itself is looking correct. But when using this clip again issues are happening. But that's VEGAS responsibility. Maybe you shoudn't use the alpha channel template for the final video.

    • Render the text clip with the alpha channel template
    • Render the final clip with a non-alpha channel template (as you don't want alpha information there)

    Help to improve this plugin and support me on patreon or paypal. Thank you.

    Do you need a custom Voukoder build really fast? Click here.

    I also create custom encoder plugin solutions for Adobe products and DaVinci Resolve.

    • Previous Official Post
    • Next Official Post
  • Joelson_Forte
    Student
    Reactions Received
    3
    Posts
    54
    • December 2, 2021 at 5:50 PM
    • #13

    Hi Vouk

    The screen recording I have attached shows in detail what takes place. Check it out when possible. I believe it will make you understand better.

    VEGAS now have native support for ProRes 4444 with alpha channel has been added and everything works fine when I use this option to export videos with alpha channel and re-import to the VEGAS timeline.

    But the files are huge and rendering is very slow when the alpha channel is enabled. Voukoder is more faster and generates much smaller files. So it's worth waiting to see Voukoder alpha channel working properly in VEGAS.

    Thanks again for working on this. Your encoder is very useful. Much better than MAGIX encoders.

    Edited 4 times, last by Joelson_Forte (December 6, 2021 at 10:19 AM).

  • Vouk
    Administrator
    Reactions Received
    498
    Posts
    2,491
    • December 6, 2021 at 2:52 PM
    • Official Post
    • #14

    I can reproduce this. Unfortunately I didn't find out why the alpha channel is always at 0%, even if it should be at 100%.

    Sad thing is VEGAS isn't using a "standard" pixel format for this mode.

    Help to improve this plugin and support me on patreon or paypal. Thank you.

    Do you need a custom Voukoder build really fast? Click here.

    I also create custom encoder plugin solutions for Adobe products and DaVinci Resolve.

    • Previous Official Post
    • Next Official Post
  • Joelson_Forte
    Student
    Reactions Received
    3
    Posts
    54
    • December 6, 2021 at 6:15 PM
    • #15

    Hi Vouk

    I'm sending you a screen recording and also a small project made in VEGAS Pro 19.

    In this project I created a ProRes file with alpha channel which is correctly recognized in VEGAS Pro 19.

    For this I used an extension made specifically for VEGAS Pro created by an external developer who also uses ffmpeg.

    In the settings I selected, look mainly at the ffmpeg command line:

    ffmpeg -y -i <inAVS> -i <inTempWav> -map 0:v -map 1:a -c:v prores_ks -profile:v 4 -c:a pcm_s16le <outFile>.mov

    As I don't know how to interpret FFMPEG command lines very well, you are the ideal person for this.

    Maybe what you're looking for is on that command line.

    The Screen Record and the project are in this link bellow:

    ProRes 4444 Alpha to Voukoder.rar
    Shared with Dropbox
    www.dropbox.com

    Hope this helps somehow!

    Thanks!

    Joelson

    Edited 2 times, last by Joelson_Forte (December 6, 2021 at 6:30 PM).

  • Vouk
    Administrator
    Reactions Received
    498
    Posts
    2,491
    • December 6, 2021 at 6:28 PM
    • Official Post
    • #16

    It is an issue with VEGAS and I've already contacted Magix if they can help me with this.

    Help to improve this plugin and support me on patreon or paypal. Thank you.

    Do you need a custom Voukoder build really fast? Click here.

    I also create custom encoder plugin solutions for Adobe products and DaVinci Resolve.

    • Previous Official Post
    • Next Official Post
  • Joelson_Forte
    Student
    Reactions Received
    3
    Posts
    54
    • December 6, 2021 at 7:26 PM
    • #17

    Thanks Vouk!

    Now we just have to wait for an answer from Magix.

  • Vouk
    Administrator
    Reactions Received
    498
    Posts
    2,491
    • December 21, 2021 at 11:50 AM
    • Official Post
    • #18

    Got feedback from Magix. They're investigating it.

    Help to improve this plugin and support me on patreon or paypal. Thank you.

    Do you need a custom Voukoder build really fast? Click here.

    I also create custom encoder plugin solutions for Adobe products and DaVinci Resolve.

    • Previous Official Post
    • Next Official Post
  • Joelson_Forte
    Student
    Reactions Received
    3
    Posts
    54
    • December 21, 2021 at 9:20 PM
    • #19

    Hi Vouk

    It's great news!

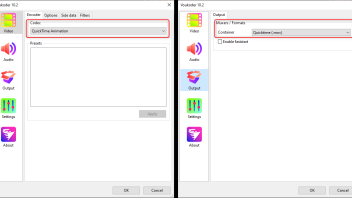

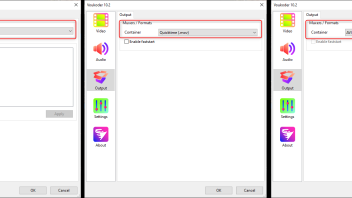

    Until MAGIX solves this problem, how about adding the alpha channel option in Quick Time Animation codec + .mov container...

    ...and also in Go Pro Cineform HD codec + .mov and .AVI containers.

    The alpha channel in VEGAS and Premiere always worked fine with this types of files. But, to all works fine in files with .mov container is necessary to have the Quick Time plugin installed on Windows...

    https://support.apple.com/kb/dl837?locale=en_US

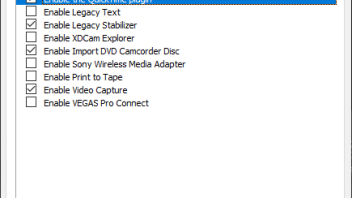

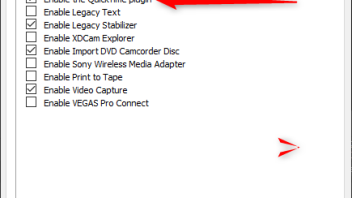

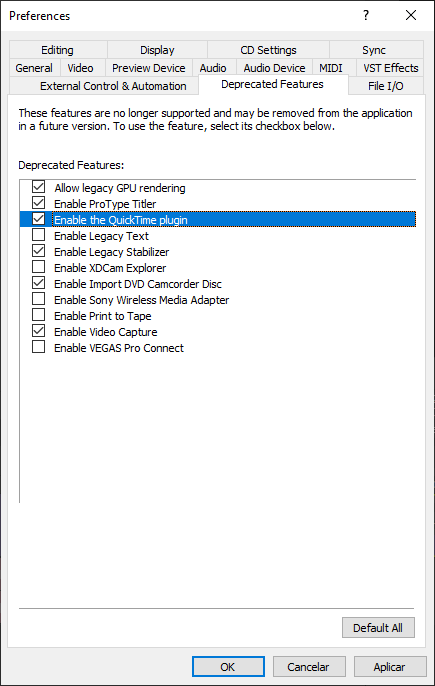

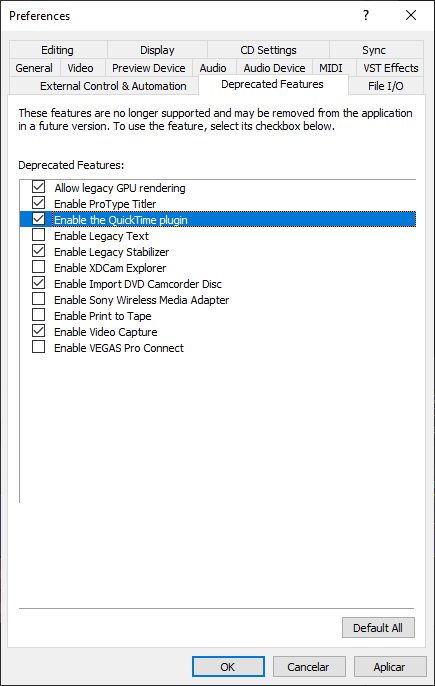

    ...and in VEGAS Pro 18 or higher, the Quick Time plugin option enabled in Preferences/Deprecated Features.

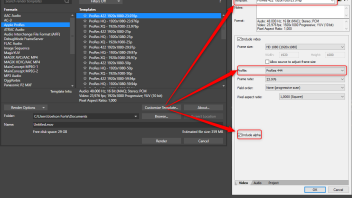

    If you would like additional information about ProRes with alpha channel working on VEGAS pro 19, see this link:

    ProRes 4444 Alpha to Voukoder.rar
    Shared with Dropbox
    www.dropbox.com

    Images

    • 3.png
      • 24.63 kB
      • 435×686
      • 212

    Edited 10 times, last by Joelson_Forte (December 24, 2021 at 2:57 PM).

  • Steve Rhoden (Hentys)
    Student
    Reactions Received
    10
    Posts
    67
    • December 23, 2021 at 8:43 AM
    • #20

    Hi Vouke,

    Joelson_Forte has mentioned an excellent suggestion, in adding an alpha channel option in the Quicktime Animation Codec .mov container..... Then we could easily export media with an alpha channel in excellent quality with a moderate file size.

    What would even be more incredible in generating a smaller file size output at great quality is using the Photo-Jpeg Codec with an alpha channel option.

    Steve Rhoden


    https://www.vegascreativesoftware.info/us/users/profile/Steve_Rhoden/


    http://www.facebook.com/FilmexCreativeMedia


    https://my.creativecow.net/Steve-Rhoden
