Good x264 settings (May 2020 update 2)

  • iAvoe
  • March 26, 2020 at 9:58 PM
1st Official Post
  • iAvoe
    x264/x265 Expert
    Reactions Received
    12
    Posts
    127
    • March 26, 2020 at 9:58 PM
    • #1

    These settings are written in cli format that is commonly used, e.g. --chroma-qp-offset 3; voukoder (and obs) uses api format which gives the same formatting with multiple encoders, e.g. chroma_qp_offset=3

    x264 Common (generally all video applies)

    [

    Note: all unlisted settings are default

    Motion search: --me umh --subme 10 (7mod x264 has max of 11) --merange 32

    Rate Control: --keyint <FRAME RATE × 8> --min-keyint <1~5, 1 gives the best quality, faster as it increases> --bframes 11 --b-adapt 2 --ref 3 --no-fast-pskip --direct auto

    Quantization: --crf 17 --qpmax 22 --rc-lookahead <FRAME RATE × 3>

    Adaptive Quantization: --aq-mode 2 --aq-strength 0.7 --trellis 2

    Loop Filter: --deblock 0:0 --psr-rd 0.7:0.2

    GPU Acceleration (don't expect it works helps a lot): --opencl

    Very very light Denoise: --nr 10

    Resize/Crop(more info can be found on internet): --vf crop:left:up:right:down/resize:width,height,sar(rectangular pixel compression),box(not sure what's this),chromaSubsampling,resizeAlgorithm

    Resize up quality boost: --partitions all

    Windows export log: 2>D:\folder\log.txt

    Linux export log: 2>&1 | tee D:\folder\log.txt]

    x264 fast (don't use original presets, they're not well aged!)

    [

    Motion search: --me hex --subme 8 --merange 16 --no-chroma-me

    Rate Control: --keyint <FRAME RATE × 5> --min-keyint <KEYINT ÷ 2> --bframes 6 --ref 3 --scenecut 33

    Quantization: --crf 17 --qpmax 22 --rc-lookahead <FRAME RATE × 2>

    Adaptive Quantization: --aq-mode 3 --aq-strength 0.8

    Loop Filter: --deblock 1:0 --psr-rd 0.7:0.3

    GPU Acc: --opencl]

    x264 lossless, special use only

    [

    Motion search: not working

    Rate Control: --keyint <FRAME RATE × 3~4> --min-keyint <=KEYINT> --bframes 6 --ref 3

    Quantization: --qp 0 --chroma-qp-offest -3

    Adaptive Quantization: as default

    Loop Filter: not working

    GPU Acc: --opencl]

    x264 Very slow, Good quality high compression

    [

    Motion search: --me esa --subme 10 --merange 52

    Rate Control: --keyint <FRAME RATE × 10> --min-keyint 1 --bframes 13 --b-adapt 2 --ref 3 --no-fast-pskip --direct auto --scenecut 35 --ipratio 1.5

    Quantization: --qpmin 13 --crf 19.5 --rc-lookahead <FRAME RATE × 3>

    Adaptive Quantization: --aq-mode 3 --aq-strength 0.8 --trellis 2

    Loop Filter: <default>

    GPU Acc: --opencl

    Very light Denoise: --nr 20

    hqdn3d denoise (x264 7mod exclusive, or filter setting in vouk): --vf hqdn3d:1.2,1.2,1.2,1.2

    Quality drop at credits roll: --zones <creditsBeginFrame>,<creditsEndFrame>,crf=28

    ]

    x264 Very slow, High quality high compression (great for ~5min clips)

    [

    Motion search: --me esa --subme 10 --merange 52

    Rate Control: --keyint <FRAME RATE × 6> --min-keyint 1 --bframes 14 --b-adapt 2 --ref 3 --no-fast-pskip --direct auto

    Quantization: --qpmax 24 --crf 17 --rc-lookahead <FRAME RATE × 3>

    Adaptive Quantization: --aq-mode 2 --aq-strength 0.7 --trellis 2

    Loop Filter: --deblock 0:0 --no-psy

    GPU Acc: --opencl

    Very very light Denoise: --nr 10

    ]

    x264 Maximum Useful Cost Possible, good quality

    [Motion Search: --me esa --merange 56 --subme 10

    Rate Control: --keyint <fps × 5> --min-keyint 1 --bframes 16 --b-adapt 2 --ref 3 --no-fast-pskip --direct auto --pbratio 1.5

    Quant: --qpmax 24 --crf 18 --rc-lookahead <fps × 4> --chroma-qp-offset -2 --vbv-maxrate 8000

    Adaptive Quant: --aq-mode 2 --aq-strength 0.7 --trellis 2

    Loop Filter: --deblock 0:0 --no-psy

    GPU Acc: --opencl

    Very light Denoise: --nr 20]

    x264 Manual Quality, unknown compression, very fast

    [Motion Search: as default

    Rate Control: --keyint <FRAME RATE × 2~3> --min-keyint <=KEYINT> --bframes 6 --ref 3 --scenecut 33

    Quantization: --qp <18 or other qualities you wish>

    Adaptive Quantization: not working

    Loop Filter: --deblock 0:-1 --psr-rd 0.7:0.53

    GPU Acc: --opencl]

    Edited 9 times, last by iAvoe: I was wrong about how lossless mode works in x264, changed settings in lossless mode Turned merange down among all settings that makes it work as encoder design intended Added maximum useful usage, good quality setting Changed some settings (May 15, 2020 at 6:54 PM).

  • Vouk
    Administrator
    Reactions Received
    498
    Posts
    2,491
    • March 26, 2020 at 10:56 PM
    • Official Post
    • #2

    Really great! I will add them to the x264 preset lists in voukoder!

    Help to improve this plugin and support me on patreon or paypal. Thank you.

    Do you need a custom Voukoder build really fast? Click here.

    I also create custom encoder plugin solutions for Adobe products and DaVinci Resolve.

    • Next Official Post
  • JakSpoon
    Beginner
    Reactions Received
    1
    Posts
    17
    • March 27, 2020 at 11:18 AM
    • #3

    Thanks a lot!!

  • CptDayDreamer
    Beginner
    Posts
    4
    • April 17, 2020 at 6:55 AM
    • #4

    Sorry, that might be an idiotic question, but how can I configure the preset you give us in Voukoder (for me Premiere Pro)? I can just select the 3 given presets for x264.

  • iAvoe
    x264/x265 Expert
    Reactions Received
    12
    Posts
    127
    • April 17, 2020 at 8:44 AM
    • #5
    Quote from CptDayDreamer

    Sorry, that might be an idiotic question, but how can I configure the preset you give us in Voukoder (for me Premiere Pro)? I can just select the 3 given presets for x264.

    Thats fine for me, its in the options page menu above the presets. The downside is you have to input every setting manually in every video project for current version (mouse select), I think the later updates than this comment would just add more presets, but you probably still have to do the calculation, and especially HDR info related parameters manually:)

  • CptDayDreamer
    Beginner
    Posts
    4
    • April 17, 2020 at 10:41 PM
    • #6

    iAvoe okay thank you! I wasn't able to set denoise and GPU acc. Is that also in Voukoder on the settings page? And with --no-psy for example you mean no-psy=yes or no-psy=1 in boolean, right?

    When I start to render a 30 min 1080p/60fps video with the given settings the rest time just increases and increases to more than 10 hrs but there is no progress. I think something is wrong or does it really need so much time?

    Edited 2 times, last by CptDayDreamer (April 18, 2020 at 12:49 AM).

  • iAvoe
    x264/x265 Expert
    Reactions Received
    12
    Posts
    127
    • April 18, 2020 at 10:01 AM
    • #7
    Quote from CptDayDreamer

    iAvoe okay thank you! I wasn't able to set denoise and GPU acc. Is that also in Voukoder on the settings page? And with --no-psy for example you mean no-psy=yes or no-psy=1 in boolean, right?

    When I start to render a 30 min 1080p/60fps video with the given settings the rest time just increases and increases to more than 10 hrs but there is no progress. I think something is wrong or does it really need so much time?

    Yeah I didn't see that setting either, but it's a x264 built-in function, it could be added in later version? I guess:/

    Yes, it is no-psy here

    I'm not sure why you are going this slow, x264 is a pretty fast encoder unless you maxed out motion search, I think it's due to some effect, you can try pre-render the sequence

    Edited 2 times, last by iAvoe (April 18, 2020 at 10:36 AM).

  • iAvoe
    x264/x265 Expert
    Reactions Received
    12
    Posts
    127
    • April 18, 2020 at 10:44 AM
    • #8
    Quote from Vouk

    Really great! I will add them to the x264 preset lists in voukoder!

    Hey I've just checked, the v5 actually didn't add those settings, is there anything wrong?:/

  • Vouk
    Administrator
    Reactions Received
    498
    Posts
    2,491
    • April 18, 2020 at 11:56 AM
    • Official Post
    • #9

    Damn, I forgot to push my latest changes to GIT so the build server did not include this changes.

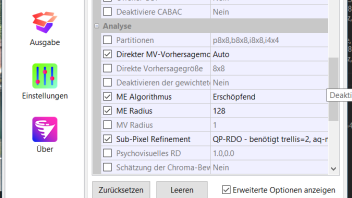

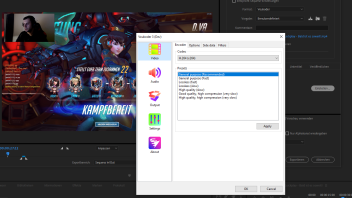

    But it will look like this:

    Help to improve this plugin and support me on patreon or paypal. Thank you.

    Do you need a custom Voukoder build really fast? Click here.

    I also create custom encoder plugin solutions for Adobe products and DaVinci Resolve.

    • Previous Official Post
    • Next Official Post
  • iAvoe
    x264/x265 Expert
    Reactions Received
    12
    Posts
    127
    • April 18, 2020 at 8:48 PM
    • #10
    Quote from Vouk

    Damn, I forgot to push my latest changes to GIT so the build server did not include this changes.

    But it will look like this:

    Hahaha ok I see, but just saying the lossless mode actually won't be fast or slower though^^

  • CptDayDreamer
    Beginner
    Posts
    4
    • April 21, 2020 at 4:41 AM
    • #11

    Vouk any idea when you will push the presets in which version? I'm not able to use the preset of iAvoe. Or it's just really that much power intensive. But I can't believe that 30 min videos would need 20 hrs or more tbh :D

  • Oliver M.D
    Beginner
    Posts
    42
    • April 23, 2020 at 3:10 AM
    • #12

    Curious when you're going to add this also, especially since it doesn't seem to be a part of version 5RC1 just yet.

  • Vouk
    Administrator
    Reactions Received
    498
    Posts
    2,491
    • April 23, 2020 at 1:20 PM
    • Official Post
    • #13

    Working on it.

    Help to improve this plugin and support me on patreon or paypal. Thank you.

    Do you need a custom Voukoder build really fast? Click here.

    I also create custom encoder plugin solutions for Adobe products and DaVinci Resolve.

    • Previous Official Post
    • Next Official Post
  • Oliver M.D
    Beginner
    Posts
    42
    • April 23, 2020 at 8:41 PM
    • #14
    Quote from Vouk

    Working on it.

    Just saw the new RC, thanks mate!

  • Vouk
    Administrator
    Reactions Received
    498
    Posts
    2,491
    • April 23, 2020 at 8:44 PM
    • Official Post
    • #15

    Yes, it's included there.

    Help to improve this plugin and support me on patreon or paypal. Thank you.

    Do you need a custom Voukoder build really fast? Click here.

    I also create custom encoder plugin solutions for Adobe products and DaVinci Resolve.

    • Previous Official Post
    • Next Official Post
  • CptDayDreamer
    Beginner
    Posts
    4
    • April 25, 2020 at 3:27 PM
    • #16

    iAvoe I've also downloaded 5RC2 now to test your presets. High Quality, High Compression would run like 24 hrs for a 30min video? Is that normal? I'm on Ryzen 3700X and GTX 1070.

    And the more interesting thing is that the high quality preset always fails. The lossless (fast) preset as well. Adobe Media Encoder logs this:

    Adobe Premiere

    Es war nicht möglich den Encoder zu initialisieren.

    Dieser Fehler tritt meinstens bei einer ungültigen Parameterkonfiguration auf.

    Which means that this parameterconfig isn't valid.

    Did you tried this one Vouk ?

  • Oliver M.D
    Beginner
    Posts
    42
    • April 25, 2020 at 8:28 PM
    • #17
    Quote from CptDayDreamer

    High Quality, High Compression would run like 24 hrs for a 30min video? Is that normal? I'm on Ryzen 3700X and GTX 1070.

    And the more interesting thing is that the high quality preset always fails. The lossless (fast) preset as well.

    HQ HC only really seems viable for short clips on my 9900k@5GHz, anything too long absolutely explodes the encoding times.

    Noticed the issue of some presets straight up not working myself also, something worth looking into maybe.

  • Vouk
    Administrator
    Reactions Received
    498
    Posts
    2,491
    • April 26, 2020 at 11:42 AM
    • Official Post
    • #18

    Okay, found it and fixed the issue.

    btw: I configured the presets for around 60 fps output without any post processing (rescaling, etc)

    Help to improve this plugin and support me on patreon or paypal. Thank you.

    Do you need a custom Voukoder build really fast? Click here.

    I also create custom encoder plugin solutions for Adobe products and DaVinci Resolve.

    • Previous Official Post
    • Next Official Post
  • Oliver M.D
    Beginner
    Posts
    42
    • April 27, 2020 at 4:16 AM
    • #19
    Quote from Vouk

    I configured the presets for around 60 fps output without any post processing (rescaling, etc)

    I was wondering for how many FPS they are set up, glad it's for 60.

    Bit of a shame about the post processing stuff tho but hey.

  • iAvoe
    x264/x265 Expert
    Reactions Received
    12
    Posts
    127
    • May 6, 2020 at 9:20 AM
    • #20
    Quote from CptDayDreamer

    iAvoe I've also downloaded 5RC2 now to test your presets. High Quality, High Compression would run like 24 hrs for a 30min video? Is that normal? I'm on Ryzen 3700X and GTX 1070.

    And the more interesting thing is that the high quality preset always fails. The lossless (fast) preset as well. Adobe Media Encoder logs this:

    Adobe Premiere

    Es war nicht möglich den Encoder zu initialisieren.

    Dieser Fehler tritt meinstens bei einer ungültigen Parameterkonfiguration auf.

    Which means that this parameterconfig isn't valid.

    Did you tried this one Vouk ?

    Display More

    Yep, it is, this setting has maxed high cost parameters. However there are even slower modes that are less effective. I uses this only for ~5min videos though

    I'm not sure why it's not working though

    Edited once, last by iAvoe (May 6, 2020 at 9:32 AM).

  • iAvoe May 15, 2020 at 7:20 AM

    Changed the title of the thread from “Good x264 settings (will update x265 settings later)” to “Good x264 settings (May 2020 update 2)”.
